Our automatic horizontal seaming machine by Tenon has been developed in response to the demands of the glass tempering market which requires fast and accurate arising, but traditionally experiences difficulties with vertical edging using diamond belts or 'vee' type wheels.

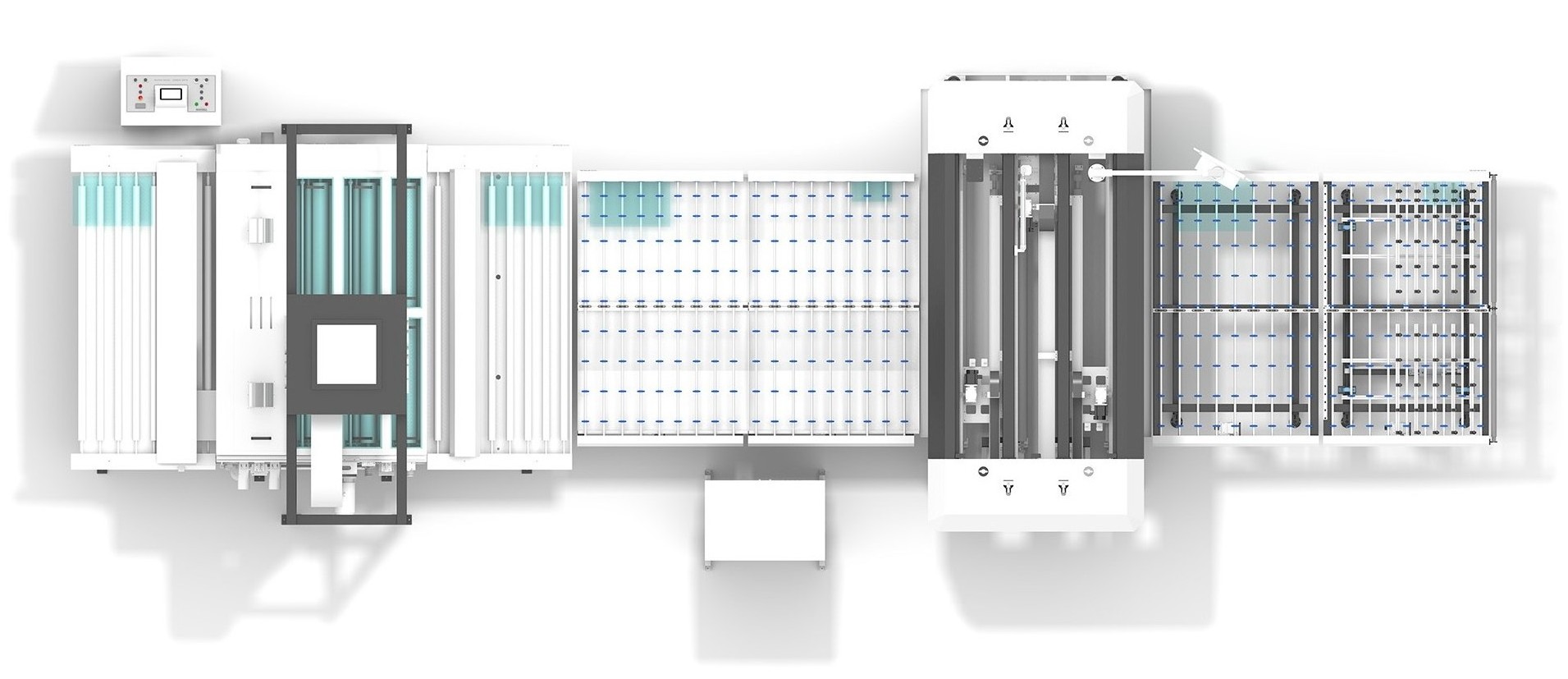

The Tenon seaming machine is used to remove the sharp edges of glass by grinding all four sides using four separate individually controlled heads each with four grinding wheels. The TWM horizontal seamer automatically adjusts for different glass sizes and thicknesses and can be connected directly in line with a horizontal washing machine.
View Brochure
TWM

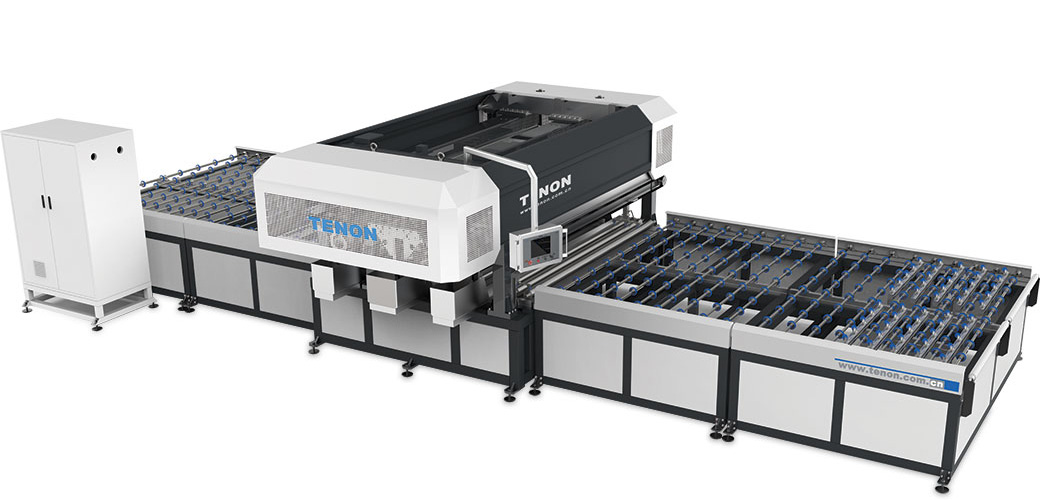

The first four headed seaming machine developed by Tenon. This fast seamer is the market leader in horizontal edging and is largely maintenance-free. Giving a perfect edge every time, the four head seamer makes the best use of the peripheral diamond wheels, typically reducing edging costs by up to 75%.
View Specs| Models | TWM 1800 | TWM 2500 | TWM 3000 |
| Footprint | 8100 x 3900 x 2000mm (LxWxH) | 8100 x 4600 x 2000mm (LxWxH) | 8100 x 5100 x 2000mm (LxWxH) |
| Power | 21kW | 21kW | 21kW |
| Glass Thickness | 4 - 12mm (3mm option) | 4 - 12mm (3mm option) | 4 - 12mm (3mm option) |
| Grinding Thickness | 0.5 - 2.0mm | 0.5 - 2.0mm | 0.5 - 2.0mm |
| Index Speed | 25 to 40m/min | 25 to 40m/min | 25 to 40m/min |
| Minimum Glass Size | 350 x 500mm | 350 x 500mm | 350 x 500mm |
| Maximum Glass Width | 1800mm | 2440mm | 3000mm |
