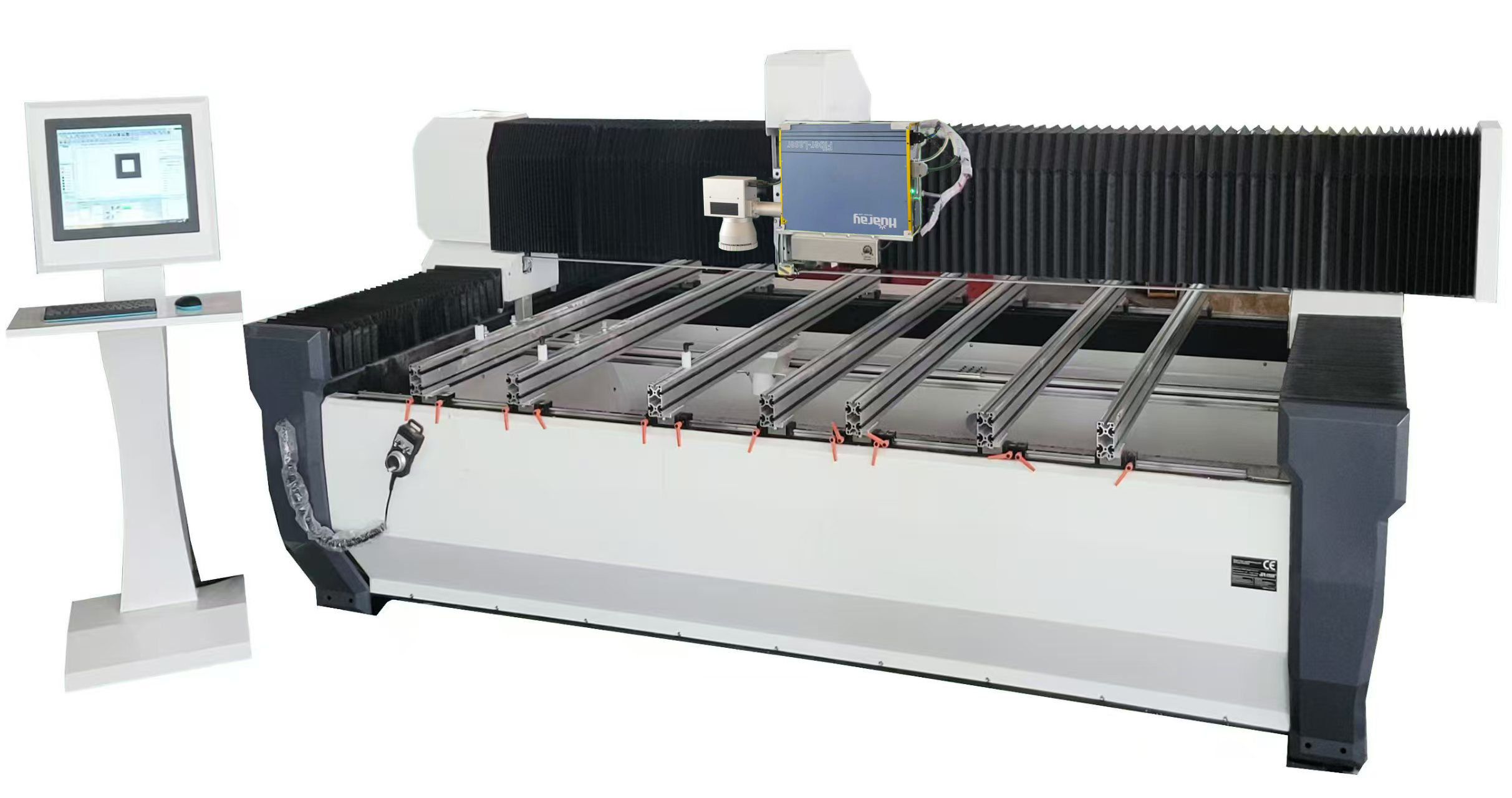

The Huaray G-1325-120 laser machine is engineered for professionals who demand precision, consistency and versatility in glass processing. Built around a generous 1300 × 2500 mm working area, it is ideally suited for handling large-format glass panels, mirrors and decorative sheets with ease.

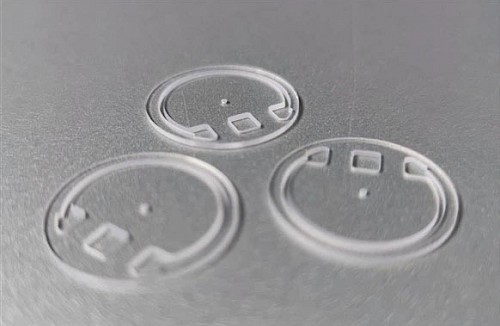

Designed specifically for high-accuracy applications, the system enables frosting, engraving, surface removal and drilling with exceptional control. It produces clean apertures, intricate patterns and functional openings without cracking or thermal distortion—making it a reliable solution for demanding glass environments.
G-1325-120
Advanced Glass Processing Performance
Its multi-functional capability allows users to sandblast, frost, drill, and remove coatings within a single platform. This makes the G-1325-120 perfectly suited for:
- Architectural glass production
- Bathroom mirror processing
- Interior décor applications
- Specialist and bespoke glass manufacturing
With an impressive 0.001 mm working accuracy and high-speed marking of up to 7000 mm/s, the machine delivers crisp detailing and consistent results—even on delicate surfaces. The water-cooled laser system enhances operational stability while minimising maintenance, ensuring dependable performance in both high-volume production and custom fabrication settings.
Purpose-built for precision and flexibility, the G-1325-120 provides a powerful, future-ready solution for professionals seeking superior drilling capability and high-quality surface finishing.
View Specs| Specification | Details |
|
Laser Type |
MOPA Fibre Laser |
|
Laser Power Options |
100W / 120W / 200W / 300W |
|
Working Accuracy |
0.001 mm |
|
Marking Speed |
3000–7000 mm/s |
|

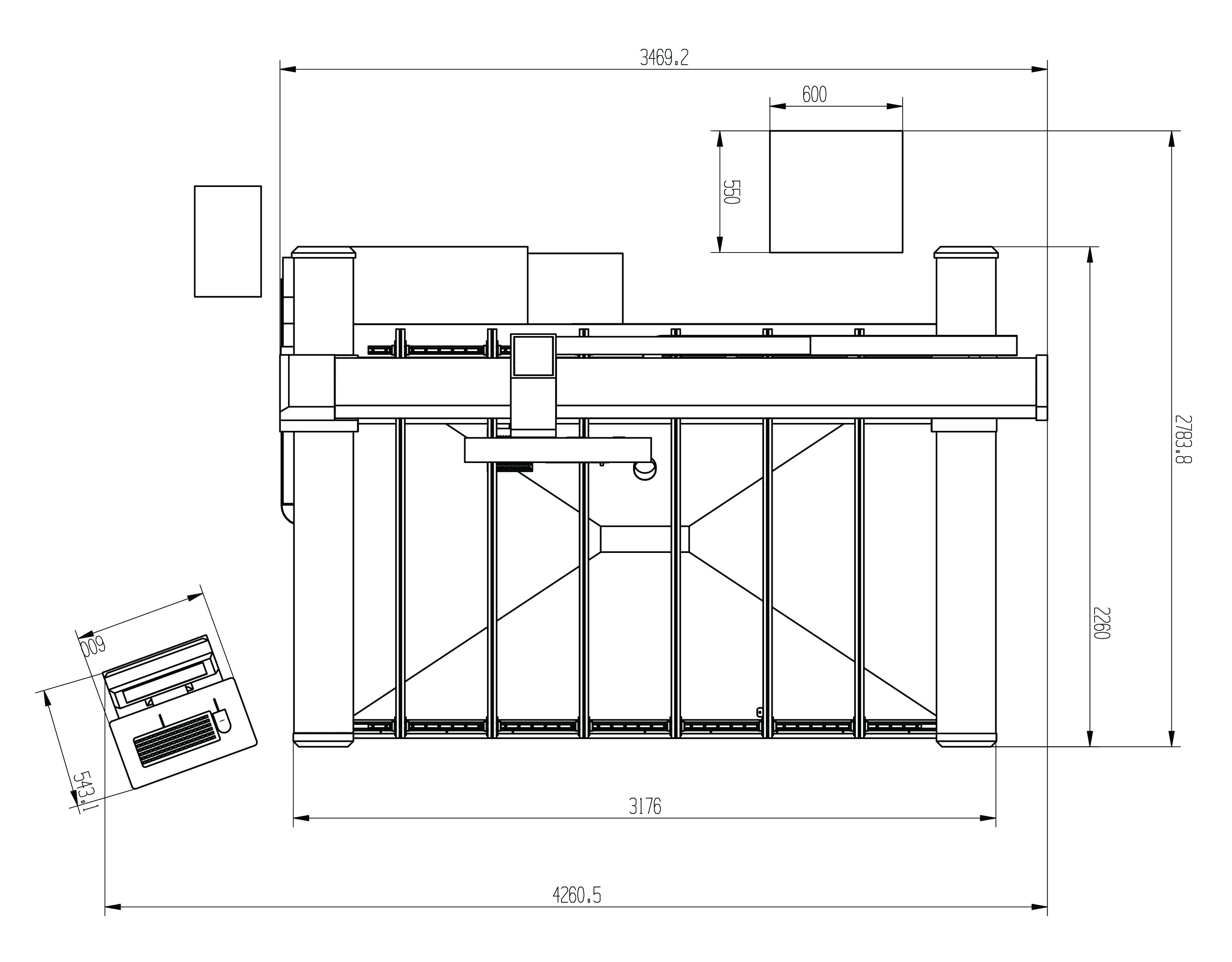

Working Area |
1300 × 2500 mm |
|
Supported Formats |
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
|
Control System |
SYNTEC or BJJCZ |
|
Cooling System |
Air Cooling |
|
Supported Materials |
Glass, Mirror |
|
Lifting Height |
300 mm (customisable) |
|
Operating Environment |
10–35°C, 5–85% humidity (non-condensing) |
Innovative Flat Glass Solutions
